Traction Unit PCE08

///Traction Unit PCE08

Traction Unit PCE08

Traction Unit utilizes the Traction which is a technique in which a pulling force is used to stretch soft tissues and to separate joints surfaces or bone fragments. The use of spinal traction is to obtain pain relief and functional improvement with proper positioning of the patient and the correct angle of full traction may be localized to a specific area.

Categories: ,

Description

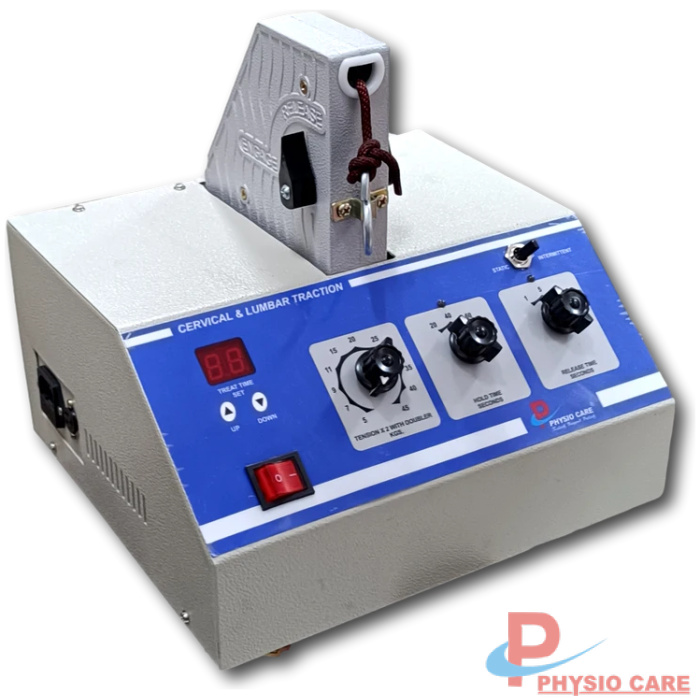

Traction Unit

Traction Unit utilizes the Traction which is a technique in which a pulling force is used to stretch soft tissues and to separate joints surfaces or bone fragments. The use of spinal traction is to obtain pain relief and functional improvement with proper positioning of the patient and the correct angle of full traction may be localized to a specific area.

Cervical and Lumber Traction Unit has a pulling force which is used to stretch soft tissues and to separate joint surface or bone fragments.

Traction Unit  has molded Aluminum Gear Box and Metal Gear gives it a long life and jerk free traction.

  • Solid State circuitry.
  • Patient’s safety switch
  • Audiovisual Alarm.
  • Low Power consumption
  • Static Intermittent Switch
  • Digital treatment timer.
  • Weight adjustment:5kg to 45kg with doubler

Uses

  • Traction Unit is used to treat Lumber Problems and Cervical Disorders.
  • The uses of spinal traction are to obtain pain relief and functional improvement with proper positioning of the patient and the correct angle of full traction may be localized to a specific spinal area.
  • Removal of muscular spasms by creating a ‘physiological rest’.

Accessories

  • Cervical Collar
  • Spreader Bar
  • Pelvic Belt
  • Thoracic Belt
  • Traction Doublers
  • Main Cord
  • Patient Safety Switch
  • 2A Fuses
  • Dust Cover

Specification

SpecificationValues
Main Supply220V 50Hz
Consumption85 Watts
Lumber Force15-45kg with doublers upto 90kg
Cervical Force3,4,5,6,7,8,9,10,11,12,13 kg
Mode SelectionSeperate Switch
TimerDigital(0-99 min) with Auto Alarm
Hold Time20,40,60,80 sec
Rest Time1,5,10,15 sec
Weight10 kg
Dimension (H x W x L)30 x 31 x 28 cm
