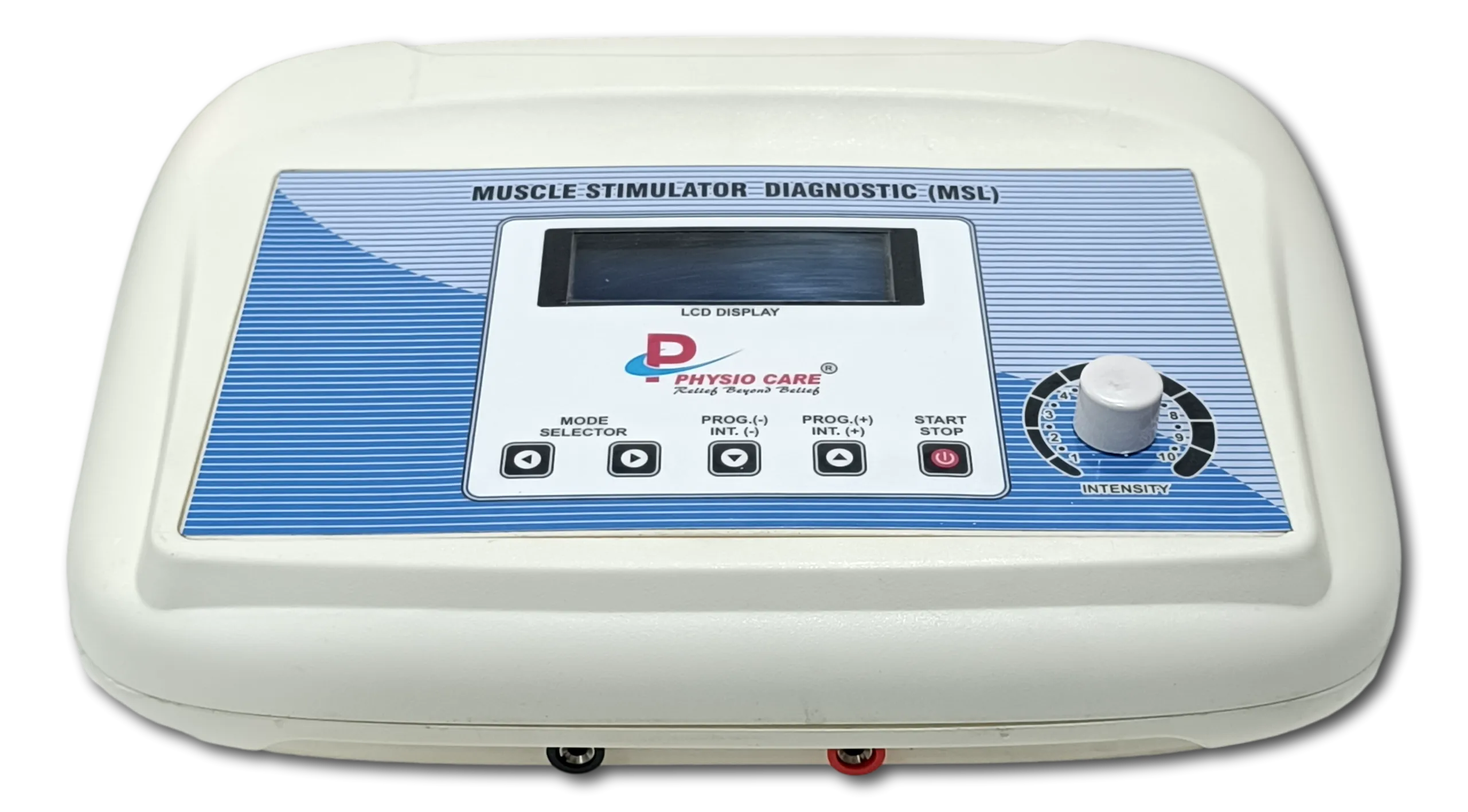

Muscle Stimulator Diagnostic LCD PC304

Physiocare’s Muscle Stimulator LCD is a compact and advanced digital model specifically engineered for both diagnostic and therapeutic applications. This versatile device serves multiple purposes, including plotting the Strength Duration Curve and stimulating both innervated and denervated muscles. This specific model comes equipped with LCD technology

Category:

Description

Physiocare’s Muscle Stimulator LCD is a compact and advanced digital model specifically engineered for both diagnostic and therapeutic applications. This versatile device serves multiple purposes, including plotting the Strength Duration Curve and stimulating both innervated and denervated muscles.

It is highly effective in addressing various conditions such as muscle dystrophy, functional paralysis, cardiovascular disorders, and muscle strains. The Muscle Stimulator LCD ‘s precise and controlled electrical stimulation aids in muscle rehabilitation, improving muscle strength and function.

Standard Accessories

  • Two Output Leads
  • One Pen Electrode
  • One Set of Velcro
  • Two Pad Electrodes
  • One Main Cord
  • One Gel Bottle
  • One Bag

Technical Specification

Main Input 200-230V 50Hz AC
Therapy Mode Faradic, Surge Faradic, Galvanic Int., Galvanic
Pulse Width (Faradic) 7 ms
Pulse Width (Int. Galvanic) .01,  .03, .1, .3, 1,3,10,30,100,300 ms
Frequency (Faradic) 40-60 Pulse/Second
Frequency (Galvanic) 1-100 Pulse/Second Variable
Tens Frequency 1-150 Hz Variable
Tens Pulse Width 0.01-1 ms
Weight 2 Kg
Dimension 33 cm x 30 cm x 9 cm

Additional information

Weight 2 kg
Dimensions 33 × 30 × 9 cm
Body

ABS

Warranty

1 Year
