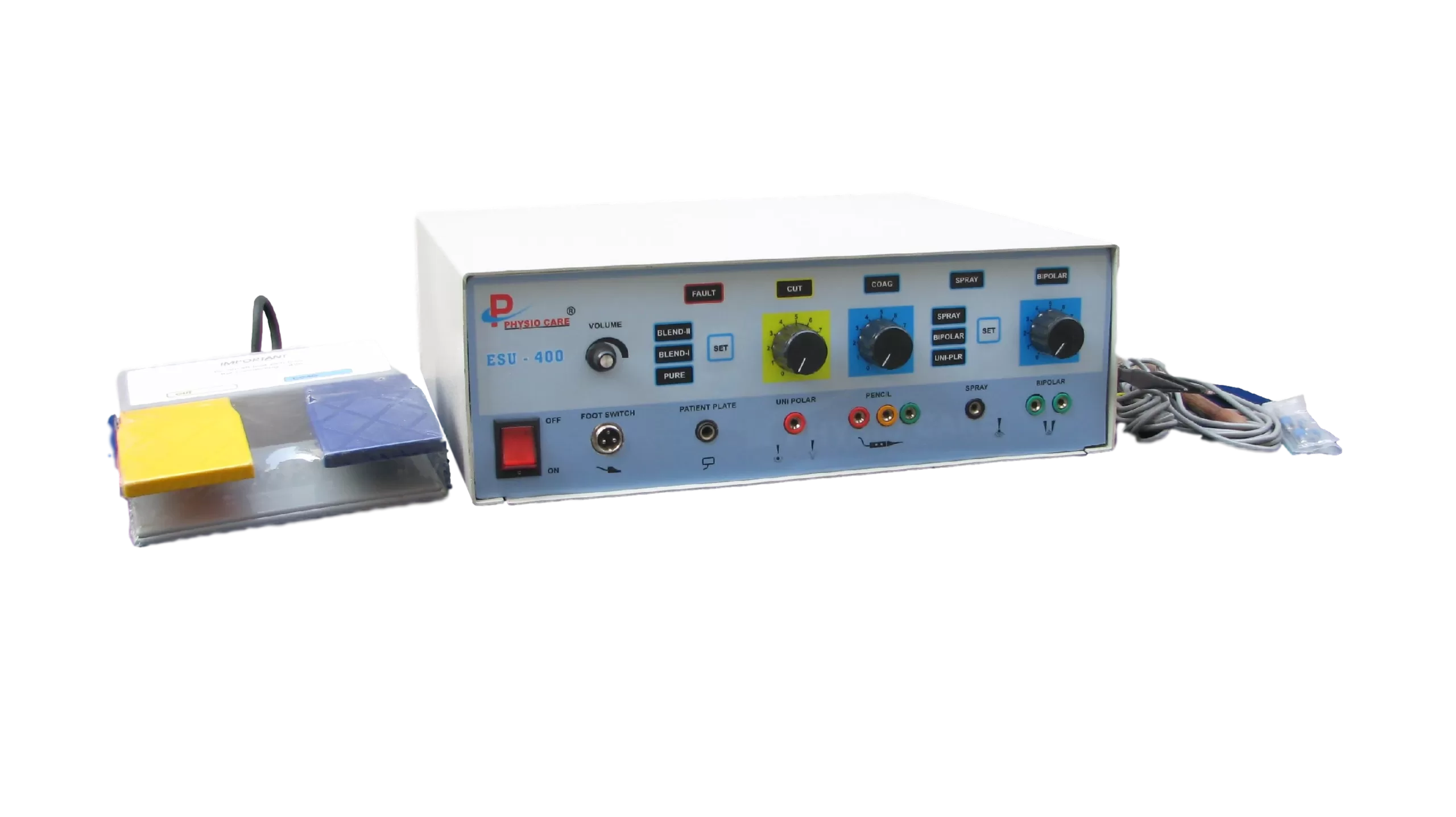

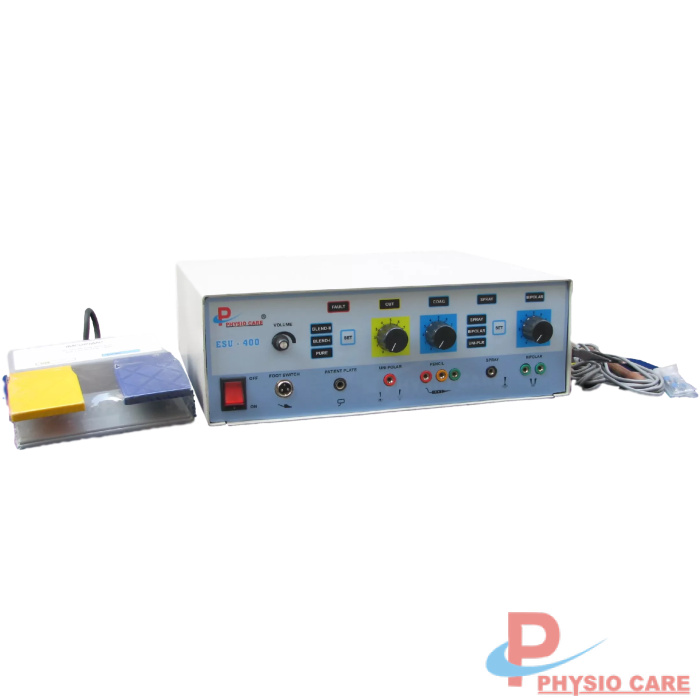

Electro Surgical Unit 400W PC1202

Electro Surgical Unit (Surgical Cautery) from Physio Care is a cutting edge device engineered to redefine precision and versatility in medical procedures. Designed to cater to both mono and bipolar applications, this advanced device empowers healthcare professionals with unmatched control and efficacy in surgical interventions.



Physio Care’s Electro Surgical Unit (Surgical Cautery) stands as a versatile instrument adeptly accommodating both mono and bipolar procedures. In the monopolar approach, the unit employs a Patient Plate to complete the return current path. Designed with a two-wire floating output circuit, a standard in modern ES generators, this configuration guarantees secure and efficient electrical current flow during monopolar procedures.

For bipolar procedures, the Electro Surgical Unit eliminates the necessity for a patient plate, instead utilizing specialized insulated forceps. This innovative arrangement enables controlled electrical current flow between the forceps’ insulated tips, ensuring meticulous coagulation and precision cutting for intricate surgical maneuvers.

Bipolar coagulation techniques hold prominence across various surgical specialties, including neurosurgery, gynecology, microsurgery, hand surgery, and vascular surgery. Renowned for their heightened precision and control, these techniques prove particularly advantageous in procedures demanding minimal tissue disruption.

Experience surgical innovation and meticulous control with Physio Care’s Electro Surgical Unit.

Standard Accessories

  • Patient Plate
  • Main Cord

Technical Specification

Operational Voltage 220-240 volts AC 50 Hz
Cut Control (Pure) 400 watts 500 ohms Load
Cut Control (Blend-I) 225 watts 500 ohms Load
Cut Control (Blend-II) 500 watts 500 ohms Load
Coagulation Control 160 watts 500 ohms Load
Bipolar Coagulation 100 watts 125 ohms Load
Spray Coagulation 100 watts 125 ohms Load
Output Frequency Monopolar Generator 500+/- 25Khz
Power Consumption 250 VA approx.
Weight 12 Kg approx
Dimension (LWH) 33 cm x 38 cm x 12.5 cm

Additional information

Weight 12 kg
Dimensions 33 × 38 × 12.5 cm



1 Year
