Description
Discover the automated BTL-6000 High Intensity Robotic Laser with the Scanning System Elite, offering gentle yet highly efficient pain management for your patients. Laser light’s healing effect stems from biostimulation, expediting cellular processes that aid in pain relief and quicker injury recuperation.
With its distinctive blend of 30W power and a 1064nm wavelength, it precisely reaches deep tissues, ensuring optimal pain alleviation and providing potent thermic therapies in a shorter duration.
Robotic Scanning System is an operator-free procedure that:
- Covering body areas up to 1200cm2
- Ideal for back area, large muscle groups, and joints
- Temperature monitoring of homogenous energy spreads
- Thermal Perception Scan for personalized therapy
- Patient position control ensures safe distance between patient and device
Medical effects
- Stimulation of tissue growth and repair
- Immediate and long-lasting pain relief
- Microcirculation and lymph drainage support
- Anti-inflammatory
BTL Scanning System Elite
Scanning System is an accessory for BTL-6000 High Intensity Laser 30W
- Automatic Intelligent Scanning System
- Unattended therapy
- Temperature monitoring
- Checking the patient’s position
Technical Specification for High Intensity Robotic Laser & Scanning System
BTL Scanning System Elite
| Model |
BTL Scanning System Elite* |
| Display |
7″ color touch screen |
| Functions |
1. Body screening
2. Checking patient position
3. Thermal Perception Scan
4. Thermal camera
5. Thermal graph
6. Multi-level calibration |
| Performance |
up to 30 W |
| Wavelength |
1064 nm |
| Frequency |
1Hz–20kHz |
| Duty factor |
25% – 75% |
| Regime |
Continuous, pulse, superpulse, triangular, sequential, single pulse |
| The size of the treated area |
25 cm2 – 1225 cm2 |
| Preset protocols |
37 |
| Mains Supply |
240V AC, 50-60Hz |
| Dimensions |
20 cm x 25 cm x 40 cm |
| Weight |
36 Kg |

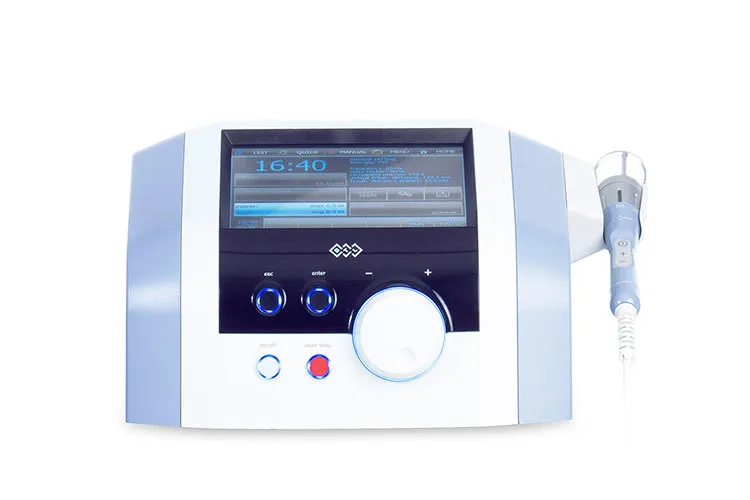

BTL-6000 High Intensity Laser 30 W
| User Interface |
8.4″ colour touch screen |
| Features |
Multilevel calibration, Handpiece with therapy control, Personalized treatment parameters |
| Wavelength |
1064 nm |
| Power |
30W |
| Frequency |
1Hz – 20kHz |
| Duty Factor |
25% – 75% |
| Emission Modes |
Continuous, Pulsed, Superpulsed, Triangular, Single Pulsed |
| Application Area |
1 cm2 – 50 cm2 |
| Power Supply |
220-240V AC, 50-60Hz |
| Dimension |
32 cm x 19 cm x 28 cm |
| Weight |
8 Kg (without instrument cart) |
